January 9, 2017

Distributed Minio with Docker

Ok, I think I will switch to english for the next posts ;-)

I’ve created an Minio Docker-Image for ARM. Which can be found on GitHub or on Dockerhub.

Today I want to show you how to run Minio it in distributed mode. The distributed mode can give you high availability and data protection.

Preparing the Nodes

Storage Directory

You need a directory on each node to store the data and an additional one for storing the configuration.

$ sudo mkdir -p /export/minio
$ sudo mkdir /export/minio-config

Docker pull command

On each Node you need to pull the minio-docker-arm image.

$ sudo docker pull pixelchrome/minio-arm

Docker run command

And as a last command it is necessary to run the container on each node

$ sudo docker run --rm -p 9000:9000 --name minio \
  -e "MINIO_ACCESS_KEY=AKIAIOSFODNN7EXAMPLE" \
  -e "MINIO_SECRET_KEY=wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY" \
  -v /export/minio:/export \
  -v /export/minio-config:/root/.minio \
  --net=host \
  pixelchrome/minio-arm server \
  http://pi1/export http://pi2/export \
  http://pi3/export http://pi4/export \
  http://pi5/export http://pi6/export

Information

Details how to run Minio in distributed mode, can you find on the Documents-Website

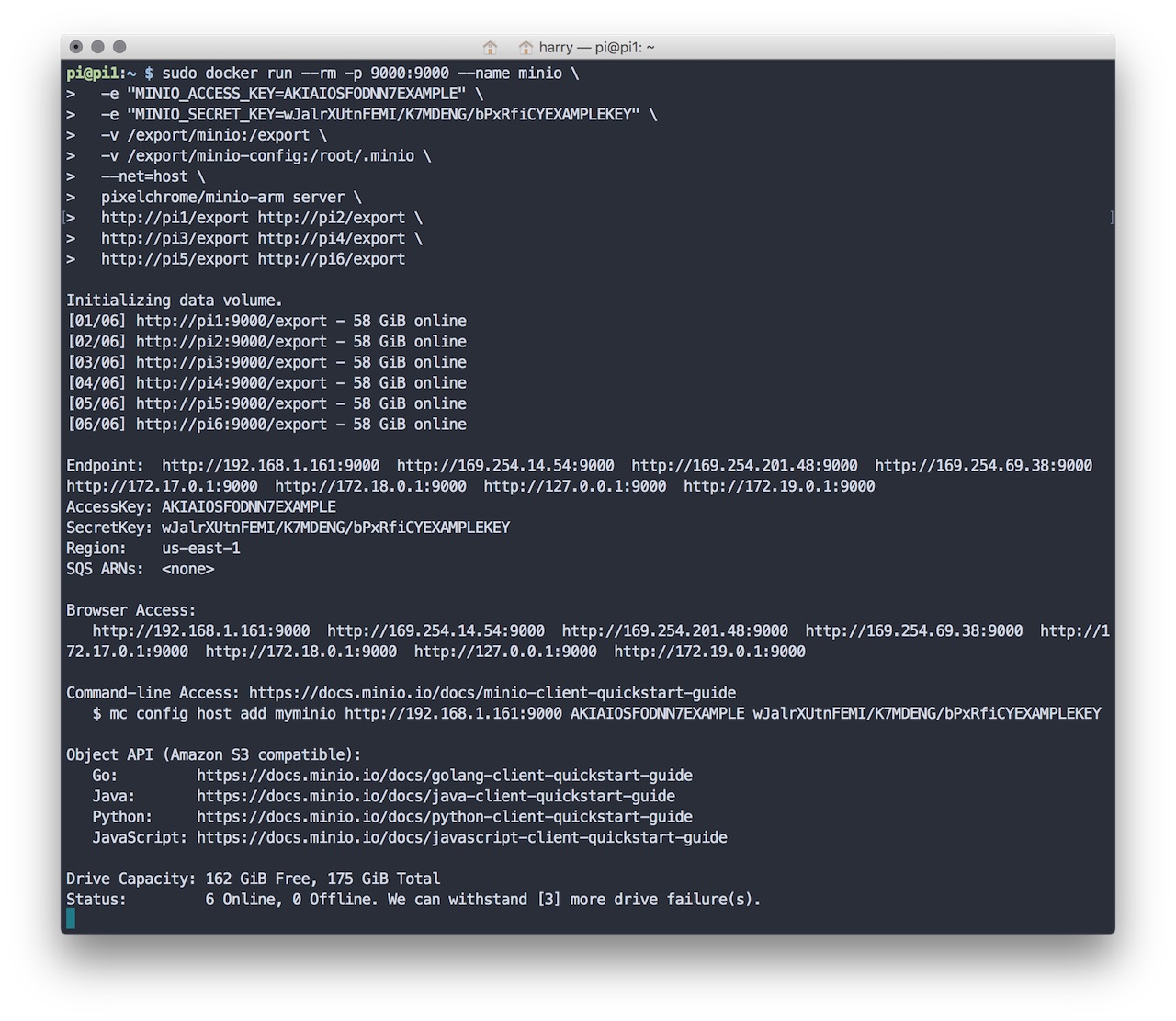

Distributed Minio Docker Screenshot
